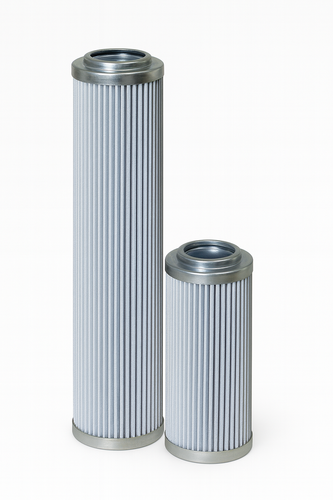

CFS FC1025 Hydraulic Pressure Line Filter Element – Glass Media, 5 Micron

The CFS FC1025 is a high-efficiency hydraulic pressure line filter element designed for fine particle removal and system protection. Built with glass media and Viton gaskets, it ensures reliable filtration in demanding applications. This element is a direct replacement for OEM filters such as Krauss-Maffei 9000-1391 and Hydac 1260896, providing equal or better performance.

Key Features

5-micron rating with high dirt-holding capacity
Beta 200 @ 5.4 µm, Beta 1000 @ 7.7 µm
Outside-in flow direction for maximum filter area use
Viton gaskets for chemical and temperature resistance

Technical Specifications

Part Type	Hydraulic
Element Type	Pressure Line
Product Media	Glass
Height	13.970 in
OD Top	2.720 in
ID Top	1.350 in
OD Bottom	2.720 in
Collapse Pressure	435 PSI
Operating Temp Min	-13°F
Operating Temp Max	248°F
Capacity	63 g
Filter Area	672 sq in
Flow Direction	Outside-In
Gasket Material	Viton
Fluid Type	HH / HL / HM / HV
Beta Ratio 1	200 / 5.4 µm
Beta Ratio 2	1000 / 7.7 µm
Micron Rating	5 µm
Weight	1.892 lbs
