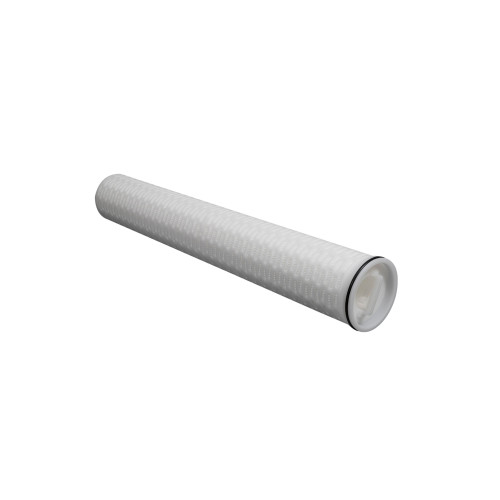

CFS-HF Series High Flow Pleated Filter Cartridge (Pall Replacements)

CFS-HF Series Pleated Depth Media Cartridges

Custom Filtration Solutions' CFS-HF series pleated depth media cartridges provide highly efficient micronic and submicronic particulate retention for high-purity fluid filtration applications. Available in polypropylene (PP) and micro-glass media, these cartridges offer superior flow permeability, high contaminant capacity, and excellent chemical resistance. Designed as a compatible fit with Pall® High-Flow series, they deliver reliable performance across a variety of demanding applications.

Optimized Retention Levels

Choose from four efficiency levels to achieve the best balance of retention, service life, and cost-effectiveness:
✔ Absolute + / 99.98% – Maximum retention
✔ Absolute / 95% – High-efficiency filtration
✔ Nominal / 80% – Standard filtration performance
✔ Water Grade / 60% – Extended service life with economical performance

Key Features:

• Durable polypropylene media & components for long-lasting use
• Micro-glass media option for enhanced permeability and efficiency
• Compatible fit with Pall® High-Flow series filters
• Thermally-bonded construction ensures cartridge integrity

Applications:

✔ Beer, wine, distilled spirits, bottled water
✔ Food products & ingredients
✔ RO prefiltration
✔ Process water & wastewater treatment
✔ Fine chemical processing

Uncompromising Product Quality:

• Manufactured in a clean-room environment for purity and cleanliness
• Produced within an ISO 9001:2015 certified quality management system
• Each filter element is inspected for compliance with integrity requirements
• FDA & EU-compliant materials for safe use with food and potable water

Materials of Construction:

• Media: Polypropylene or Micro-Glass
• Support Layers: Polypropylene
• Cage/Core/End Caps: Polypropylene
• Seal Options: Silicone, NBR, EPDM, FKM

Specifications:

• Diameter: 152mm (6.0")
• Lengths: 20”, 40”, 60”, 80”
• Operating Temperature: Up to 80°C (176°F)
• Maximum Operating Pressure:
  • 4 bar (58 psi) @ 20°C (68°F)
  • 2.4 bar (35 psi) @ 80°C (176°F)
• Change-Out Pressure Drop: 2.6 bar (38 psi) @ 20°C (68°F)

With CFS-HF series cartridges, you get cost-effective, high-performance filtration without compromising quality or reliability.
