CFS MajorDepth Capsule Filters -

331-215-4119
No reviews yet Write a Review
  • Safe Payments

  • Amazing Selection

Custom Filtration Solutions range of DepthPlus® Capsule Filters are used in the bio-products industry primarily for cell harvest clarification and downstream liquid filtration processes.


DepthPlus Series Options

MiniDepth® … for lab scale filtration.
PureDepth® … for pilot testing and R&D lab scale protein production.

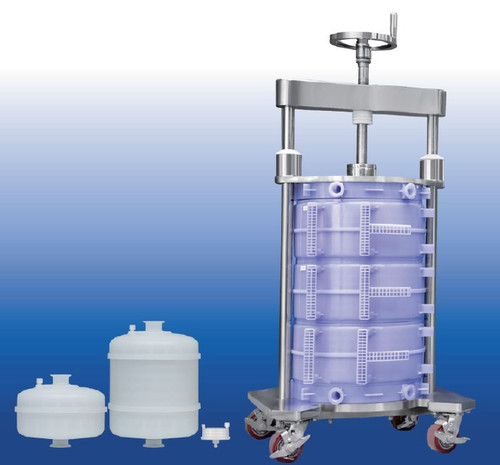

MajorDepth® … includes three models with different processing capabilities: small, large and integrated models. All models are comprised of a holder, a set of top and bottom separators, and a number of filter modules that can be configured to meet needs.

Features

  • Disposable design provides for easy assembly and disassembly
  • High contaminant holding capacity
  • High filtration efficiency for impurities

Applications

  • Culture medium filtration
  • Cell lysates filtration
  • Host cell protein or hybrid protein aggregates filtration
  • Pilot-scale investigations and R&D process development to facilitate optimizations and scale-up

Product Quality

  • Individual elements are identified by serial number.
  • Produced in a clean-room environment for product purity & cleanliness.
  • Manufactured within an ISO 9001:2015 certified quality management system.
  • A Certificate of Quality document is provided with each production lot.

Materials of Construction

Media: Cellulose, Filter Aids, Binder Resin
Support Layers: Polypropylene, Polycarbonate
Seals: Silicone

Operating Conditions

Operating Temperature: 40°C (104°F) max.
Operating dP (max.): 3 bar (44 psi)
Autoclaving: 125°C (257°F), 30 minutes, 1 cycle

Available Configurations

Bio-Safety

  • Complies with USP<85>, non-pyrogenic per USP Bacterial Endotoxin Requirements (>0.25EU/mL)
  • Complies with USP<87>, USP<88>



Core:
Polycarbonate
