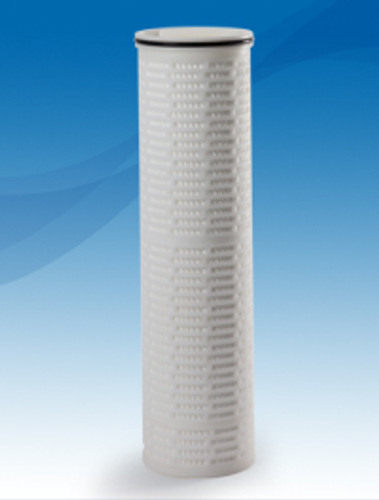

HFEC Series
High Flow Eco Cartridge Filters
- High Flow Eco Cartridges are designed for residential, commercial and light industrial filtration at an economic price and an exceptional value
- All polypropylene construction
- 98% retention ratings from .5 to 70 microns
- Heavy duty outer cage replaces costly stainless steel
- support basket.
- Handle provides fast and easy push / pull installation
- O-ring seal on cartridge eliminates bypass
- Inside out flow retains contaminant during change out
- Pleated media designed for high flow and long service life
- Thermally bonded construction
- FDA listed materials – All materials comply with FDA Title 21 of the Code of Federal Regulations Sections 174.5 and 177.1520, as applicable for food and beverage contact
- Dimensions Nominal:
- Length: 23” (58.4 cm) Outside Diameter: 6” (15.2cm) Surface area: 25 ft² (2.32 m²)
- Materials of Construction:
- Filter Media: Polypropylene End Caps: Polypropylene Cage: Polypropylene Gaskets: EPDM standard Optional: Buna-N, Viton, Silicone
- Operating Parameters:
- Maximum operating Temperature: 140°F @ 20 psid (60°C @ 1.4 bar)
- Recommended changeout Differential Pressure::
- 15 psid (1.0 bar)
- Pore Sizes:
- 0.5, 1, 5, 10, 20, 50, 70 micron
