4-5/8" Mikro Bottom Load

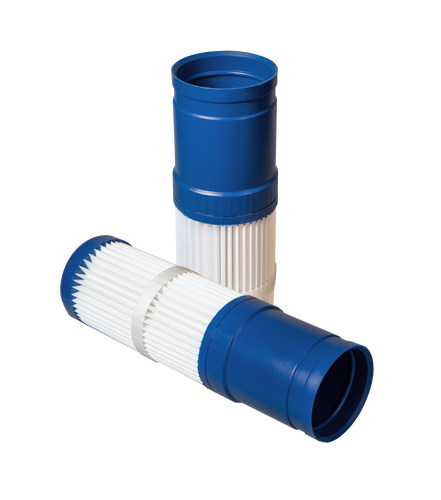

The Custom Filtration Solutions Micro Bottom Load series of molded end pleated dust filter elements are engineered to fit common industry 4-5/8” diameter bottom bag removal dust collector styles with integral bag cups/hubs. The long molded boot allows the existing venturi to sit above the top of the filter to maximize the effective filtration area of the filter. After installation a worm gear clamp is applied to the top outer groove to complete the seal.
Benefits of Custom Filtration Solutions pleated bags compared to traditional fabric bags
- One piece filter (plus clamp) cuts filter changing time in half – no separate bag cage to deal with
- Filters are washable and reusable in most cases
- Wide shallow pleats handle high dust loads
- Surface loading media releases desired powdered product in process applications
- Rugged and durable construction increases filter life for reduced maintenance requirements
- Collection efficiencies 10 X or higher vs. a traditional polyester bag
- Surface loading media operates at a lower pressure drop – saves energy
- Lower pulse pressures required for cleaning
- Materials of construction are tolerant of a wide range ofprocess chemicals
Standard Construction Features
- 100% spun bond polyester filter media
- Molded FDA compliant urethane top and bottom
- 225° F (107° C) continuous operating temperature
- Open pleat spacing; shallow pleats
- Expanded metal galvanized core
- Strong and secure woven polyester outer bands
Custom Construction Features
- Choice of finished length and pleat count
- Choice of cores: polypropylene or stainless steel, rolled or perforated
- Customizable pleat counts
- Grounded design
- Riveted bands
