C&W Molded Top Load

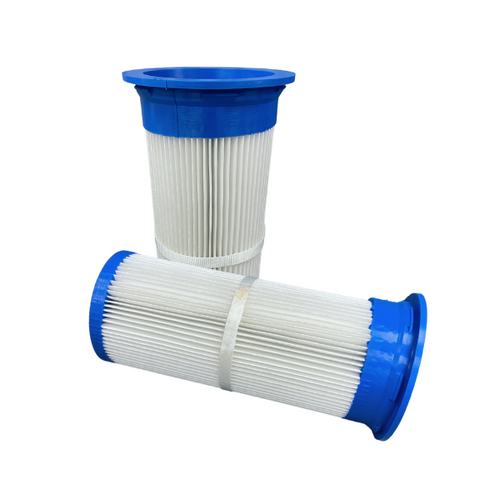

The Custom Filtration Solutions CTL series of molded end top loading pleated dust filter elements are engineered to fit industry standard 8.125” diameter tubesheet holes. The CTL series fit tubesheets up to 3/16” thick. After installing the filter by pushing it into the tubesheet hole from above, insert the precision-engineered stainless steel snap band, included with each filter, to provide a dust-tight seal.
Benefits of Custom Filtration Solutions pleated bags compared to traditional fabric bags
- One piece filter (plus snap band) cuts filter changing time in half – no separate bag cage to deal with
- Filters are washable and reusable in most cases
- Wide shallow pleats handle high dust loads
- Surface loading media releases desired powdered product in process applications
- Rugged and durable construction increases filter life for reduced maintenance requirements
- Collection efficiencies 10 X or higher vs. a traditional polyester bag
- Surface loading media operates at a lower pressure drop – saves energy
- Lower pulse pressures required for cleaning
- Materials of construction are tolerant of a wide range of process chemicals
Standard Construction Features
- 100% spun bond polyester filter media
- Molded FDA compliant urethane top and bottom
- 225° F (107° C) continuous operating temperature
- Open pleat spacing; shallow pleats
- Expanded metal galvanized core
- Strong and secure woven polyester outer bands
Custom Construction Features
- Choice of finished length and pleat count
- Choice of cores: polypropylene or stainless steel, rolled or perforated
- Customizable pleat counts
- Grounded design
- Riveted bands
References
CD011 CD012 CD017 CD029 CD030 LPR-4-S FILTER LPR-6-S FILTER LPR-8-S FILTER
CP-35 CP-70 CP-88 CP-1440 CP-1335S CP-2150 CP-2000S CP-2880 CP-2665S CP-3240 CP-3600 CP-3335S
CP-4000S CP-4320 CP-5000S CP-5250 CP-7500 CP-10000 CP 12500 CP-14000
CP0300878 CP15202078 CP19002578 CP27403678 CP2250378 CP30404078 CP9001278
