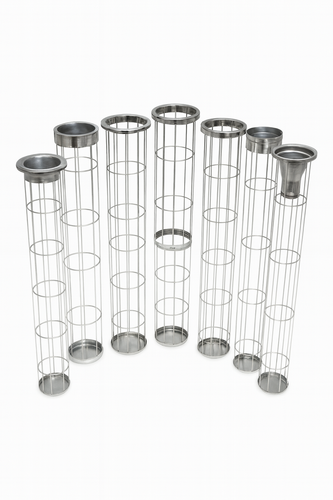

Top Load Baghouse Filter Cages
Custom Filtration Solutions manufactures high-quality top load dust collector cages built for performance and durability in pulse jet baghouse systems. These internal support structures play a critical role in maintaining the shape of filter bags, preventing collapse, and ensuring optimal airflow and cleaning efficiency.
What makes our cages different?
-
Built to fit all common top load baghouse configurations
-
Compatible with new installations or retrofits of existing systems
-
Customizable specs to match your bag design and collector model
-
Manufactured to tight tolerances with inspection twice hourly for quality control
-
Optional venturis available to enhance pulse cleaning efficiency
Key Features and Capabilities
-
Common top load styles include:
-
Flat flange
-
Turndown flange
-
Flat flange with split collar
-
-
Cage diameters: 4" to 6.25"
-
Wire diameters: 0.125" to 0.25"
-
Vertical wires: 10, 12, 20, or 24
-
Ring spacing: 3" to 8"
-
Lengths: 18" to 20 feet (single piece)
-
Available in round shape
Material and Coating Options
-
Mild carbon steel
-
Galvanized steel
-
300 and 400 series stainless steel
-
Specialty alloys: 904L, Inconel 600, Hastelloy, Duplex 2205, Titanium
-
Protective coatings: epoxy, powder coating, and plating
-
Optional venturis for optimized cleaning performance
Compatible with Most Major Collectors
-
Donaldson
-
Wheelabrator
-
Mikropul
-
Flex-Kleen
-
MAC
-
Sly
-
Brandt
-
Carter Day
-
Seneca
-
Jason March
-
And more
Additional Services
-
Forklift-ready crating and enclosed/skeleton skid options
-
Production volume flexibility: from prototypes to full-scale manufacturing runs
-
Standard lead times: 2–4 weeks
Designed for Demanding Environments
Our cages can be engineered to withstand high heat, moisture, corrosive atmospheres, and other harsh operating conditions. Whether you’re replacing existing cages or specifying for a new installation, we can deliver a solution that extends filter bag life and keeps your system running at peak performance.
Not sure which cage style or material is right for your application? Let us know your collector model and operating conditions—we’ll help you spec the right cage.
