Custom Filtration Solutions (CFS) — ESP Extended Surface Pleat Liquid Bag Filter
Overview
The CFS ESP Extended Surface Pleat liquid filter bag is designed for high dirt-holding capacity and longer on-stream life. Under normal operating conditions, ESP bags can provide approximately four times the service life of a standard nominal felt bag, reducing change-outs and downtime while increasing throughput. Unique internal pleats use two layers of pleated felt to maximize usable media area.
Key Features
- ~4× life of a standard nominal bag (typical, under normal operating conditions).
- Unique internal pleats with two layers of pleated felt for high dirt loading.
- Wide chemical compatibility with polypropylene and polyester media choices.
- Media options meet FDA food-contact requirements (CFR 21 §177.1520).
- Silicone-free construction.
- Choice of steel ring or plastic flange connections.
- Handles on all ring-style bags (standard).
Felt Materials and Micron Ratings
Media Type | Material | Available Micron Ratings |
---|---|---|
PES | Polyester | 1, 5, 10, 25, 50, 75, 100 |
POG | Polypropylene | 1, 5, 10, 25, 50, 75, 100 |
Bag Dimensions
Size Code | Nominal Dimensions | Notes |
---|---|---|
P2 | 7.06" diameter × 32" length | Often listed nominally as 7" × 32" |
Connections — Rings & Flanges
Code | Description (CFS) |
---|---|

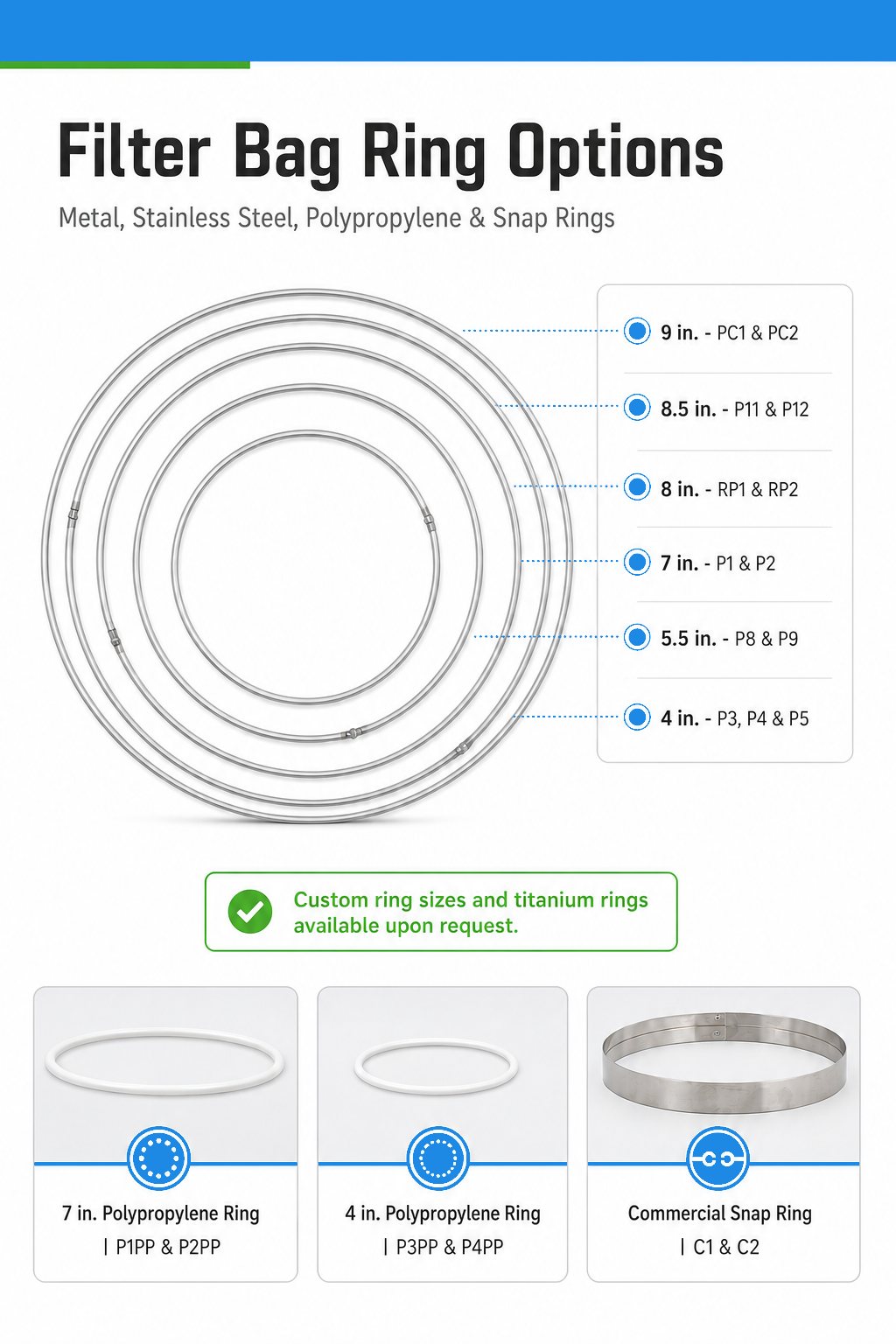

S | Galvanized steel ring |
SS | Stainless steel ring |

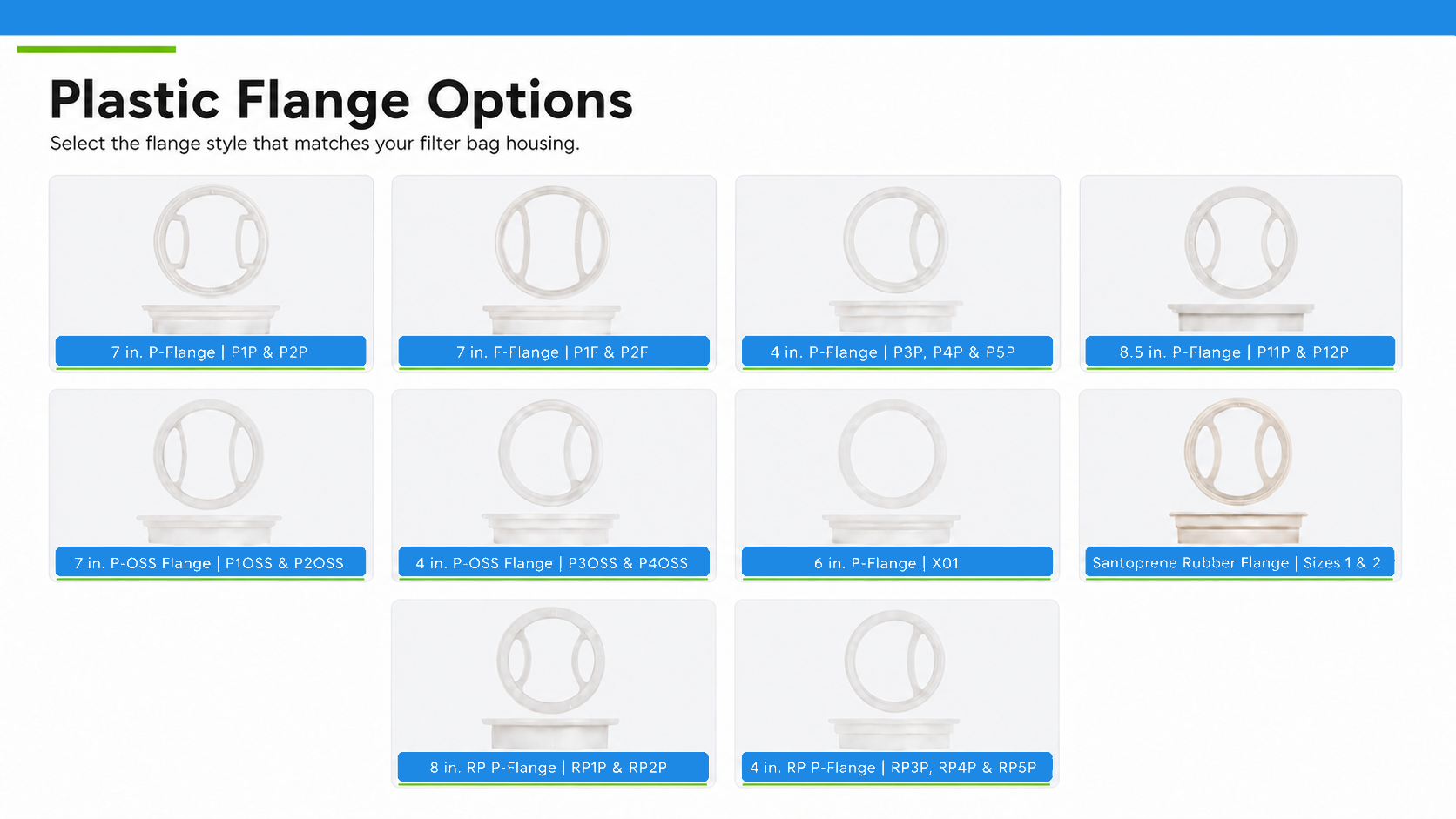

P | CFS “P” flange (plastic) |
F | CFS “F” flange (plastic) |
OSS | CFS “OSS” flange |
Options
Code | Meaning |
---|---|
H | Handle (standard on all ring-style bags) |
-ESP | Extended Surface Pleat construction identifier |
Ordering Information (Part Number Builder)
Example Part Number: PES10P2SH-ESP
Media Type | Micron Rating | Bag Size | Ring / Flange Style | Options |
---|---|---|---|---|
PES (Polyester) or POG (Polypropylene) | 1, 5, 10, 25, 50, 75, 100 | P2 = 7.06" × 32" | S = Galvanized steel ring SS = Stainless steel ring P = CFS “P” flange F = CFS “F” flange OSS = CFS “OSS” flange |
H = Handle (ring-style standard), -ESP = Extended Surface Pleat |
How the Example Decodes
Segment | Value | Meaning |
---|---|---|
Media Type | PES | Polyester felt |
Micron Rating | 10 | Nominal 10 micron |
Bag Size | P2 | 7.06" × 32" length |
Ring / Flange | S | Galvanized steel ring |
Options | H-ESP | Handle; Extended Surface Pleat construction |
Typical Uses
- General liquid filtration where longer life and fewer change-outs are desired.
- Applications benefiting from wide chemical compatibility of PP/PET felts.
- Processes requiring silicone-free construction.
- Food-contact compliant applications (per CFR 21 §177.1520).
Notes
- Service life and dirt-holding capacity depend on process conditions and contaminant profile.
- Select ring or flange style to match your housing design and sealing requirements.
