Microfiber Filter Bags (High-Efficiency Filters)
High-efficiency microfiber liquid filter bags from Custom Filtration Solutions (CFS) provide absolute-rated performance for polish-level filtration at low differential pressure. These multilayer bags use meltblown microfiber with optional prefilter zones to extend life, improve dirt-holding capacity, and deliver efficiencies up to 95% at the rated micron. Available in polypropylene (POMF) and polyester (PEMF) constructions, with multiple ring and flange styles to fit standard housings.
Why Choose High-Efficiency Microfiber Bags
- Micron ratings from 0.5A to 90A (absolute-rated family)
- Industry standard and custom sizes available
- Choice of steel ring or plastic flange styles
- Wide chemical compatibility
- Excellent oil-absorbing capability (application dependent)
- Handles available on ring-style bags
- Typical efficiencies to 95% at rating
High-Efficiency Bag Materials
Microfiber media provide high efficiencies at low micron ratings. An optional needle-punched felt prefilter layer can be added to create a graded-density profile, increasing surface area and extending service life. The multilayer construction balances fine capture with low pressure drop.
Bag Styles

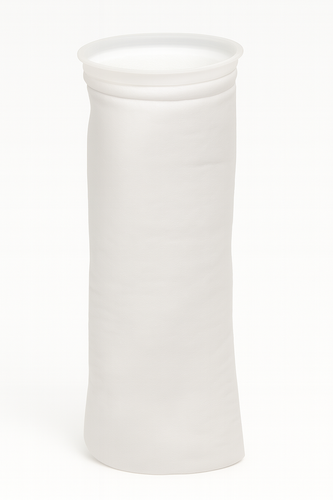

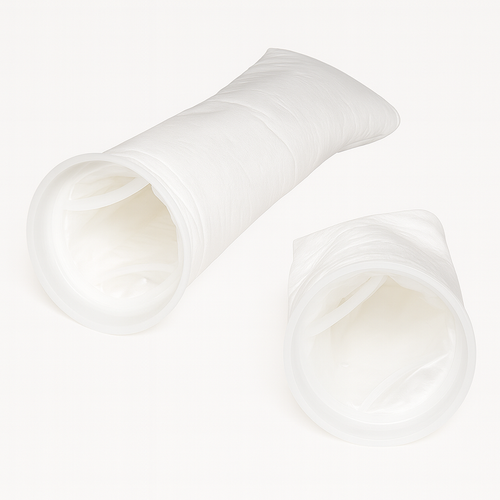

Ring-style bags are supplied with a galvanized steel ring (stainless steel optional) sewn into the top of the bag and include a handle. Plastic collar (flange) styles use a specially designed flange sewn to the top of the bag for positive sealing in compatible housings.
High-Efficiency Materials & Micron Ratings (95% Min)
| Material | .5A | 1A | 2A | 5A | 10A | 25A | 50A | 90A |
|---|---|---|---|---|---|---|---|---|
| Polypropylene (POMF) | • | • | • | • | • | • | • | • |
| Polyester (PEMF) | • | • | • | • | • | • | • | • |
Ordering Information
Standard Sizes & Dimensions
| Size | Diameter | Length |
|---|---|---|
| P1 | 7″ | 16″ |
| P2 | 7″ | 32″ |
| P3 | 4″ | 8″ |
| P4 | 4″ | 14″ |
| P5 | 4″ | 24″ |
| P7 | 5.5″ | 15″ |
| P8 | 5.5″ | 31″ |
| P11 | 8.5″ | 16″ |
| P12 | 8.5″ | 32″ |
| C1 | 7.3″ | 16.5″ |
| C2 | 7.3″ | 32.5″ |
| RP-1 | 8″ | 30″ |
| RP-2 | 8″ | 40″ |
| PC-1 | 9″ | 30″ |
| PC-2 | 9″ | 40″ |
| X01 | 6″ | 22″ |
Ring / Flange Styles
| Code | Description |
|---|---|
| S | Galvanized Steel Ring |
| SS | Stainless Steel Ring |
| PP | Polypropylene Ring |
| T | Titanium Ring |
| P | CFS P-Flange (plastic collar) |
| F | CFS F-Flange (plastic collar) |
| OSS | CFS OSS Flange |
| NR | No Ring |
| E | Santoprene Rubber Flange |
Options
| Code | Option | Notes |
|---|---|---|
| H | Handle | Standard on all ring-style bags |
| Prefilter | Needle-punched felt layer | Creates graded density; extends life |
How to Specify
Build the part number as: [Media] [Absolute Micron] [Bag Size] [Ring/Flange] [Options].
Example: POMF 5A P1 S H
Typical Applications
- Final polishing of process water, chemicals, and coatings
- Fine particulate control before RO/UF membranes
- Food & beverage polish filtration (verify compliance requirements)
- Electronics, inks, resins, and specialty chemicals
- Oil haze reduction (application dependent)
Replacement Manufacturers (Liquid Filter Bags)
CFS provides direct-fit replacements for most major liquid filter bag brands. If your brand is not listed, send us the part number or a photo and we will cross-reference it.
| Replacement Manufacturers | |||
|---|---|---|---|
| 3M | Parker Hannifin | Strainrite | FSI (Filter Specialists Inc.) |
| Hayward | GE / Pentair | Shelco Filters | Eaton (LOFCLEAR / DURAGAF / GAF) |
| Meissner | Amazon Filters | Pall Corporation | Global Filter |
| Other OEMs (contact CFS for cross-reference) | |||
Request a Quote
Provide your housing size, desired absolute micron, flow rate, temperature, and chemistry. A CFS specialist will confirm the correct POMF/PEMF media, bag size, and ring/flange for a direct fit. Contact Custom Filtration Solutions.
