With Polyester Snapband

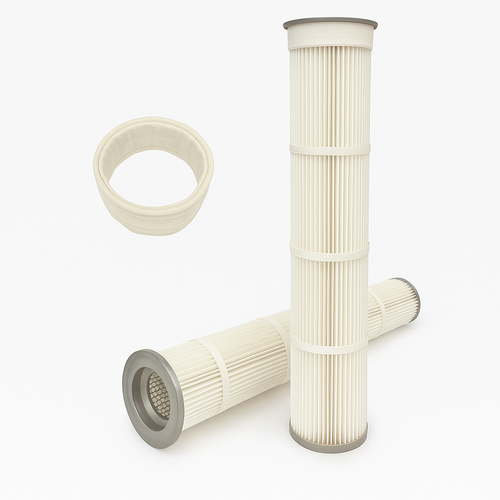

The Custom Filtration Solutions DSS series of top loading pleated dust filter elements are provided with flanged top caps with seamless polyester-covered cuffs, and molded urethane bottom caps. All DSS filters include a separate polyester felt covered snap band. To install, first the snap band is inserted into the tubesheet hole (for tubesheets up to 3/16” thick) providing a secure seal. Next, the filter is lowered for a press fit. The standard DSS design fits 6.25” tubesheet holes and is capable of adjustments to fit 6.20” or 6.375” diameter tubesheet holes.
Benefits of Custom Filtration Solutions pleated bags compared to traditional fabric bags
- One piece filter (plus snap band) cuts filter changing time in half – no separate bag cage to deal with
- Filters are washable and reusable in most cases
- Wide shallow pleats handle high dust loads
- Rugged and durable construction increases filter life for reduced maintenance requirements
- Collection efficiencies 10 X or higher vs. a traditional polyester bag
- Surface loading media operates at a lower pressure drop – saves energy
- Lower pulse pressures required for cleaning
- Materials of construction are tolerant of a wide range of process chemicals
Standard Construction Features
- 100% spun bond polyester filter media
- Flanged galvanized top cap with seamless polyester wrapped cuff
- Included separate polyester felt snap band for tubesheet seal
- Molded FDA compliant bottom cap
- 225° F (107° C) continuous operating temperature
- Open pleat spacing; shallow pleats
- Expanded metal galvanized core
- Strong and secure woven polyester outer bands
Custom Construction Features
- Choice of finished length and pleat count
- Choice of cores: polypropylene or stainless steel, rolled or perforated
- Customizable pleat counts
- Grounded design
- Riveted bands
